How to Build Cabinets
1. The best way to Assemble Cabinets
Whether you need more storage or new kitchen cabinets for the workshop, the fundamentals of cabinetry design stay exactly the same. Most units contain little higher than the usual nicely-constructed plywood box, called a carcass, that's subsequently trimmed with wood or doors trim suitable for the use. The carcass is usually made from 3/4" plywood with dadoes or rabbets to support some of the ledges and backings.
Opinions will probably be added when small changes for kitchen cabinetry are suitable, although you will help through creating one utility cupboard. This version will be 48-inches wide, 24-inches tall (having a middle and bottom ledge) and 18-inches deep. You could change the measurements to fit your specific setup as required.
- Woodworking: or stain elective
- Finishing: Paint Average
Time to Finish
- 3-4 Hours per cupboard
- Miter Saw or Circular Saw
- Table Saw with Dado Set or Router
- Two (2) 4x8 Sheet 3/4-inch BC Plywood
- One (1) 4x8 Sheet 1/4-inch Plywood
- One (1) 2x4 8-feet long
- Three (3) 1x2 8-feet long
- 3 inch and 1-1/2 inch Deck Screws
- 4d Finish Nails
- Woodworker's Glue
- Cordless or Corded Power Drill
- Claw Hammer
- Layout Square
- Materials Needed
2. Cut the Shelves to Size
To finish these free cabinet plans, you will want two ledges which are 18-inches by 47-inches, and another at 17-3/4" x 47". Take advantage of a circular saw or your table saw to rip the ledges that are cabinetry to the right widths and lengths.
3. Cutting on the Ledge Dadoes
After you have discovered the height and depth of the cupboard, cut two identical bits from among the sheets of 3/4" plywood (in this instance, you will need each piece to be 18-inches x 24-inches).
Then, you will have to determine if the sanded side of the plywood ought to be about outside or the inside of the cupboard. Whereas in case of more practical versions, especially when they are going to be installed one you may prefer the sanded side in on kitchen units, you will probably need the sanded side out.
You will be cutting two 18-inch dadoes plus one bunny on every side (perpendicular to the 24-inch edge). You could possibly utilize a router having a straight bit in lieu of a table saw.
Start the tool and carefully cut the dado on the desirable side of the stock with the 18-inch border against the fence. Repeat with the other ledge standard.
Next, place the fence to 12-inches (in the same way as before), and make another dado on the same side of each ledge standard, with the same border against the fence.
4. Cutting the Rabbets for the Back
At this point, we need to decide how the cupboard will be hanging.
Yet, in our job, we'll be using a French Cleat wedge mount that we'll fashion of a 2x4 in a future step out. As such, we do not want the added weight of the 3/4" plywood on the rear, so we'll use 1/4" plywood. In this measure, we'll be cutting a rabbet to adapt this back.
Next, you will need to cut a similar bunny into one of the two 18" ledges. This will be cut into the rear, the top side of the bottom ledge (1/4" wide and 3/8" deep).
If you're changing these strategies and will be using 3/4" plywood for the rear, you will also need to make a rabbet into the rear bottom side of the top ledge of the cupboard. Nevertheless, for hanging our unit, the process we'll be using, this bunny will not be needed.
5. Assemble the Cupboard

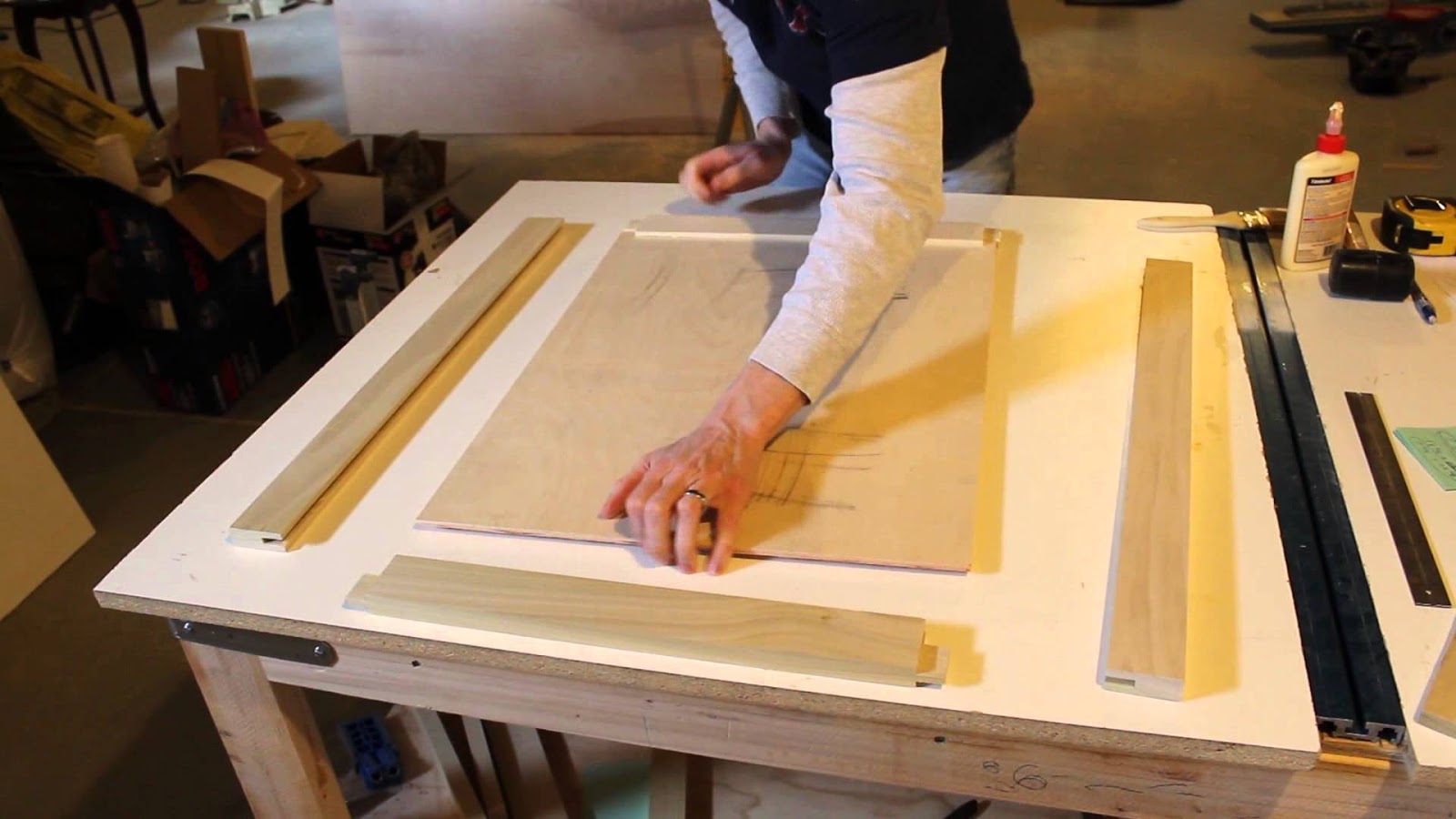

It is time for some assembly. On a big table, lay down the ledge normal that was right and dry-fit each of the three ledges into place, flush on the front side of the cupboard. Subsequently, dry-fit the left ledge standard on top of the three ledges (in place) to make sure that all joints have a comfortable fit.
It is a time when you are guaranteed of a suitable fit for all parts. Put a thin bead of adhesive in each dado/rabbet and add the proper ledge so. Subsequently, fasten the ledge to the standard with some mechanical fasteners.
There are three schools of thought when attaching ledges as to how to use mechanical fasteners. The least obvious manner would be to toenail some brands through the ledges and into the ledge standards, but this is considerably more easy if you've a pneumatic brad nailer.
The other two choices will depend on the outside of the cupboard will be completed. You will need to drive some finish nails through the ledge normal and into the ledge to fix it until the adhesive dries if the outside will be observable. Afterward, the nails can be set and the holes filled for ending.
Nevertheless, if the outside of the cupboard Won't be observable, some deck screws can be driven by you straight and through the regular into the border of every shelf. This will "attract" the ledge into the standard and ensure a tighter fit while the adhesive dries.
Complete the construction of the three ledges into both standards.
6. Install the Back
Since the unit is taking shape, we must reinforce it and assess for the square in it. We are going to make use of the back side of the cupboard to get this done.
(Once again, in the event you are changing the plans to get a distinctly sized case or using 3/4" plywood for the back, you will need to adjust appropriately.)
Place the assembly level onto its front-side on the table and assess for the square in it. To assess for square, measure diagonally in the top-right corner of the cupboard to the lower-left corner and notice the space. Subsequently, measure between both of the other corners and check to determine whether the initial measurement is matched by the space. The cupboard is square in case it fits. Otherwise, correct the fit that is carcass suitably to make the two measurements.
Now, put the 1/4" plywood onto the rear of the assembly. It will fit nicely to the rabbet on the bottom ledge as well as the rabbets on both standards. Use the back to be affixed by some finish nails.
7. Rip and Mount the French Cleat
We are going to use a French Cleat wedge bracket to mount this unit to the wall. This can be more than a 2x4 that's ripped down the center at a 45-degree angle. One-half of the cut piece will soon be mounted in the cupboard on the wall as well as another half. As well as the other half in the cupboard.
First, cross cut a tidy, straight 2x4 to 46-1/2" in length.
Set up your table saw with a blade that was ripping and tilt the arbor into a 45-degree angle. Lift the blade until it's at least 1-1/2" above the table. Place the fence in order for the underside (against the table) of the cut will be one inch broad. Set the 2x4 level on the table and carefully rip it the whole span.
Mount another French Cleat wedge from the wall. Make sure you level the wedge when mounted so your cupboard is likely to be degree.
As now you can see, of utilizing the French Cleat wedge mount system, the edge is the mount in the cupboard will sit on the wall-mounted mount, as well as the angle of the wedge will push the weight toward the wall of the cupboard.
8. Cover the French Cleat
As you will not need it to be seen after installation now, we will need to cover the French Cleat.
Utilizing the finish head nails, attach this section to the most notable of the back of the case. Set the 1x2 perpendicular and drive the nails throughout the very top of the ledge standards and also the back to the 1x2.
Then reach within the assembly and measure from your very top of the interior of the box (only in the front of the wedge) down to the underparts of the the nailer you only installed. The space needs to be six inches, but before cutting the plywood, it is far better check.
Subsequently, nail the bit into both the nailer as well as the wedge. This supply a more aesthetically pleasing appearance to the trunk of the assembly and will fully cover the wedge mount.
9. Trim the Front of the Cupboard
The final woodworking measure would be to trim the front of the cupboard. We'll be just trimming it because these units Won't have some doors.
To start, check the cupboard assembly is just 48" wide. After that, cut on one 1x2 to that span that is precise. Using finish nails, attach it to the two ledge standards along with the underside ledge, together with the very top of the bottom ledge flush with all the edges and also the very top of the 1x2 of the 1x2 flush with all the exteriors of both standards.
Measure in the very top of the bottom ledge up to the very best of the carcass. Cut two 1x2s to this span. One will be mounted to every ledge standard with finish nails, flush with all the outside of the standard.
Since the two sides happen to be trimmed, measure and cut a trim bit for the middle and top ledges, and mount them each flush together with the very top of the ledges that are similar.
10. Finishing and Mounting the Assembly
You will have to select your finish when the woodworking is completed. Most with this measure may be disregarded in the event that you are not likely to paint or stain the finished merchandise.
After that, fill the holes using nail filler or a wood putty.
Sand all surfaces smooth employing a sander by having an increasing assortment of grits.
It is time to mount the cupboard as soon as you have reached your desired finish. Check to confirm that the rear of the unit is flush with all the wall and securely in place before letting go.
Eventually, check the box to ensure it's mounted degree. If so, you are free as this job is completed to fill the cupboard that is finished as desirable.
